ABB ACS850 Drive

Download Links

📥 Download Catalog 📥 Download Manual
📥 Download Hardware Manual

Wiring Details

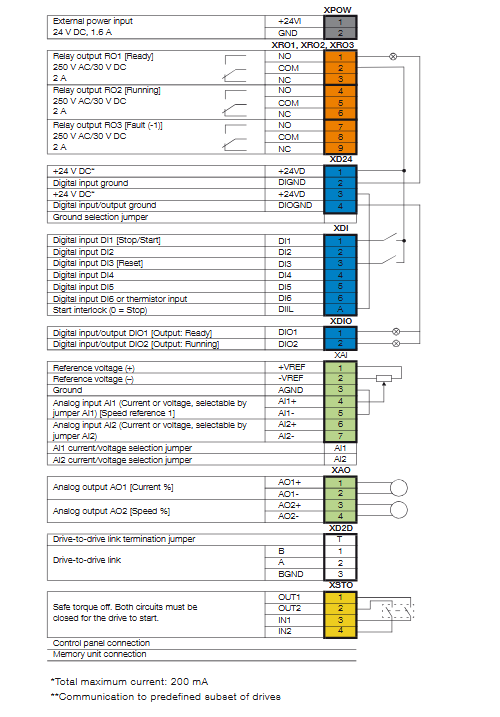

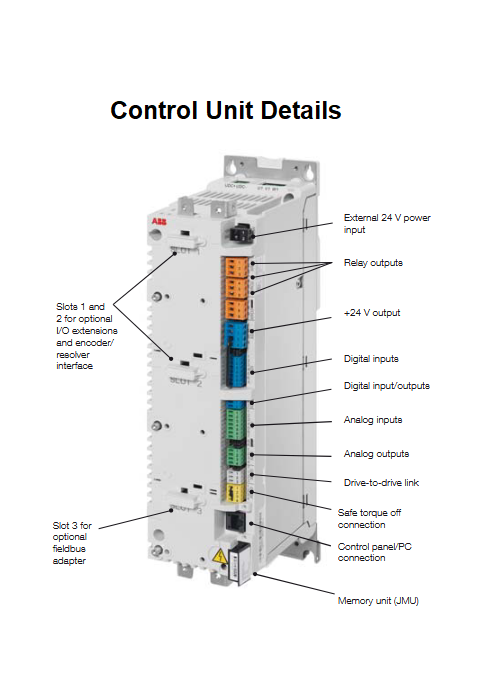

Below image show terminal details:

Faults & Alarms

Search from below list for ACS850 drive faults & alarms:

Fault CodeCause & Solution
A2000
BRAKE START
TORQUE		Cause: Mechanical brake alarm. Alarm is activated if required motor starting torque (42.08 Brake open torq) is not achieved.

Solution:

1. Check brake open torque setting, parameter 42.08.
2. Check drive torque and current limits.
3. See parameter group 20 Limits.
4. This is a Programmable fault also: check parameter 42.12 Brake fault function.
A2001
BRAKE NOT
CLOSED		Cause: Mechanical brake control alarm. Alarm is activated e.g. if brake acknowledgement is not as expected during brake closing.

Solution:

1. Check mechanical brake connection.
2. Check mechanical brake settings in parameter group 42 Mech brake ctrl.
3. To determine whether problem is with acknowledgement signal or brake, check if brake is closed or open.
4. This is a Programmable fault: check parameter 42.12 Brake fault function.
A2002
BRAKE NOT
OPEN		Cause: Mechanical brake control alarm. Alarm is activated e.g. if brake acknowledgement is not as expected during brake opening.

Solution:

1. Check mechanical brake connection.
2. Check mechanical brake settings in parameter group 42 Mech brake ctrl.
3. To determine whether problem is with acknowledgement signal or brake, check if brake is closed or open.
4. This is a Programmable fault: check parameter 42.12 Brake fault function.
A2003
SAFE TORQUE
OFF		Cause: Safe Torque Off function is active, i.e. safety circuit signal(s) connected to connector X6 is lost while drive is stopped and parameter 30.07 Sto diagnostic is set to Alarm.

Solution:

1. Check safety circuit connections.
A2004
STO MODE
CHANGE		Cause: Error in changing Safe Torque Off supervision, i.e. parameter 30.07 Sto diagnostic setting could not be changed to value Alarm.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
A2005
MOTOR
TEMPERATURE		Cause: Estimated motor temperature (based on motor thermal model) has exceeded alarm limit defined by parameter 31.03 Mot temp1 almLim.

Solution:

1. Check motor ratings and load.
2. Let motor cool down.
3. Ensure proper motor cooling: Check cooling fan, clean cooling surfaces, etc. Check value of alarm limit.


Cause: Measured motor temperature has exceeded alarm limit defined by parameter 31.03 Mot temp1 almLim.

Solution:
1. Check motor ratings and load.
2. Let motor cool down.
3. Ensure proper motor cooling: Check cooling fan, clean cooling surfaces, etc.
4. Check that actual number of sensors corresponds to value set by parameter 31.02 Mot temp1 src.
A2006
EMERGENCY OFF		Cause: Drive has received emergency OFF2 command.

Solution: To restart drive, activate Run enable signal (source selected by parameter 10.11 Run enable) and start drive.
A2007
RUN ENABLE		Cause: No Run enable signal is received.

Solution:

1. Check setting of parameter 10.11 Run enable.
2. Switch signal on (e.g. in the fieldbus Control Word) or check wiring of selected source.
A2008
ID-RUN		Cause: Motor identification run is on.

Solution: This alarm belongs to normal start-up procedure. Wait until drive indicates that motor identification is completed.

Cause: Motor identification is required.

Solution: This alarm belongs to normal start-up procedure. Select how motor identification should be performed, parameter 99.13 Idrun mode. Start identification routines by pressing Start key.
A2009
EMERGENCY
STOP		Cause: Drive has received emergency stop command (OFF1/OFF3).

Solution:

1. Check that it is safe to continue operation.
2. Return emergency stop push button to normal position (or adjust the fieldbus Control Word accordingly).
3. Restart drive.
A2011
BR OVERHEAT		Cause: Brake resistor temperature has exceeded alarm limit defined by parameter 48.07 Br temp alarmlim.

Solution:

1. Stop drive.
2. Let resistor cool down.
3. Check resistor overload protection function settings (parameters 48.01…48.05).
4. Check alarm limit setting, parameter 48.07 Br temp alarmlim.
5. Check that braking cycle meets allowed limits.
A2012
BC OVERHEAT		Cause: Brake chopper IGBT temperature has exceeded internal alarm limit.

Solution:

1. Let chopper cool down.
2. Check resistor overload protection function settings (parameters 48.01…48.05).
3. Check that braking cycle meets allowed limits.
4. Check that drive supply AC voltage is not excessive.

A2013
DEVICE
OVERTEMP		Cause: Measured drive temperature has exceeded internal alarm limit.

Solution:

1. Check ambient conditions.
2. Check air flow and fan operation.
3. Check heatsink fins for dust pick-up.
4. Check motor power against unit power.
A2014
INTBOARD
OVERTEMP		Cause: Interface board (between power unit and control unit) temperature has exceeded internal alarm limit.

Solution:

1. Let drive cool down.
A2015
BC MOD
OVERTEMP		Cause: Input bridge or brake chopper temperature has exceeded internal alarm limit.

Solution:

1. Let drive cool down.
A2016
IGBT OVERTEMP		Cause: Drive temperature based on thermal model has exceeded internal alarm limit.

Solution:

1. Check ambient conditions.
2. Check air flow and fan operation.
3. Check heatsink fins for dust pick-up.
4. Check motor power against unit power.
A2017
FIELDBUS
COMM		Cause: Cyclical communication between drive and fieldbus adapter module or between PLC and fieldbus adapter module is lost.

Solution:

1. Check status of fieldbus communication.
2. Check settings of parameter group 50 Fieldbus.
3. Check cable connections.
4. Check if communication master is able to communicate.
5. This is a Programmable fault: check parameter 50.02 Comm loss function.
A2018
LOCAL CTRL
LOSS		Cause: Control panel or PC tool selected as active control location for drive has ceased communicating.

Solution:

1. Check PC tool or control panel connection.
2. Check control panel connector.
3. Replace control panel in mounting platform.
4. This is a Programmable fault: check parameter 30.03 Local ctrl loss.
A2019
AI
SUPERVISION		Cause: An analogue input has reached limit defined by parameter 13.33 AI superv cw.

Solution:

1. Check analogue input source and connections.
2. Check analogue input minimum and maximum limit settings.
3. This is a Programmable fault: check parameter 13.32 AI superv function.

A2020
FB PAR CONF		Cause: The drive does not have a functionality requested by PLC, or requested functionality has not been activated.

Solution:

1. Check PLC programming.
2. Check settings of parameter group 50 Fieldbus.
A2021
NO MOTOR
DATA		Cause: Parameters in group 99 have not been set.

Solution:

1. Check that all the required parameters in group 99 have been set.
A2022
ENCODER 1
FAILURE 		Cause: Encoder 1 has been activated by parameter but the encoder interface (FEN-xx) cannot be found.

Solution:

1. Check parameter 90.01 Encoder 1 sel setting corresponds to actual encoder interface 1 (FEN-xx) installed in drive Slot 1/2 (parameter 09.20 Option slot1 / 09.21 Option slot2).

Note: The new setting will only take effect after parameter 90.10 Enc par refresh is used or after the JCU Control Unit is powered up the next time.
A2023
ENCODER 2
FAILURE		Cause: Encoder 2 has been activated by parameter but the encoder interface (FEN-xx) cannot be found.

Solution:

1. Check parameter 90.02 Encoder 2 sel setting corresponds to actual encoder interface 1 (FEN-xx) installed in drive Slot 1/2 (parameter 09.20 Option slot1 / 09.21 Option slot2).

Note: The new setting will only take effect after parameter 90.10 Enc par refresh is used or after the JCU Control Unit is powered up the next time.
A2027
FEN TEMP
MEAS
FAILURE		Cause: Error in temperature measurement when temperature sensor (KTY or PTC) connected to encoder interface FEN-xx is used.
Error in temperature measurement when KTY sensor connected to encoder interface FEN-01 is used.
Solution:
1. Check that parameter 31.02 Mot temp1 src / 31.06 Mot temp2 src setting corresponds to actual encoder interface installation (09.20 Option slot1 / 09.21 Option slot2):
2. If one FEN-xx module is used:
– Parameter 31.02 Mot temp1 src / 31.06 Mot temp2 src must be set either to KTY 1st FEN or PTC 1st FEN. The FEN-xx module can be in either Slot 1 or Slot 2.
3. If two FEN-xx modules are used:
– When parameter 31.02 Mot temp1 src / 31.06 Mot temp2 src is set to KTY 1st FEN or PTC 1st FEN, the encoder installed in drive Slot 1 is used.
– When parameter 31.02 Mot temp1 src / 31.06 Mot temp2 src is set to KTY 2nd FEN or PTC 2nd FEN, the encoder installed in drive Slot 2 is used.
4. FEN-01 does not support temperature measurement with KTY sensor. Use PTC sensor or other encoder interface module.
A2030
RESOLVER
AUTOTUNE ERR		Cause: Resolver autotuning routines, which are automatically started when resolver input is activated for the first time, have failed.

Solution:

1. Check cable between resolver and resolver interface module (FEN-21) and order of connector signal wires at both ends of cable.
2. Check resolver parameter settings.
For resolver parameters and information, see parameter group 92 Resolver conf.

Note: Resolver autotuning routines should always be performed after resolver cable connection has been modified. Autotuning routines can be activated by setting parameter 92.02 Exc signal ampl or 92.03 Exc signal freq, and then setting parameter 90.10 Enc par refresh to Configure.
A2031
ENCODER 1
CABLE		Cause: Encoder 1 cable fault detected.

Solution:

1. Check cable between FEN-xx interface and encoder 1. After any modifications in cabling, re-configure interface by switching drive power off and on, or by activating parameter 90.10 Enc par refresh.
A2032
ENCODER 2
CABLE		Cause: Encoder 2 cable fault detected.

Solution:

1. Check cable between FEN-xx interface and encoder 2. After any modifications in cabling, re-configure interface by switching drive power off and on, or by activating parameter 90.10 Enc par refresh.
A2033
D2D
COMMUNICATION		Cause: On the master drive: The drive has not been replied to by an activated follower for five consecutive polling cycles.
On a follower drive: The drive has not received new reference 1 and/or 2 for five consecutive reference handling cycles.

Solution:

1. Check that all drives that are polled (parameters 57.04 Follower mask 1 and 57.05 Follower mask 2) on the drive-to- drive link are powered, properly connected to the link, and have the correct node address.
2. Check the drive-to-drive link wiring.
3. Check the settings of parameters 57.06 Ref 1 src and 57.07 Ref 2 src) on the master drive.
4. Check the drive-to-drive link wiring.
5. This is a Programmable fault: check parameter 57.02 Comm loss function.
A2034
D2D BUFFER
OVERLOAD		Cause: Transmission of drive-to-drive references failed because of message buffer overflow.

Solution:

1. This is a Programmable fault: check parameter 57.02 Comm loss function.
A2035
PS COMM		Cause: Communication errors detected between the JCU Control Unit and the power unit of the drive.

Solution:

1. Check the connections between the JCU Control Unit and the power unit.
A2036
RESTORE		Cause: Restoration of backed-up parameters failed.
A2037
CUR MEAS
CALIBRATION		Cause: Current measurement calibration will occur at next start.

Solution: This is a informative alarm.
A2038
AUTOPHASING		Cause: Autophasing will occur at next start.

Solution:This is a informative alarm.
A2039
EARTH FAULT		Cause: Drive has detected load unbalance typically due to earth fault in motor or motor cable.

Solution:

1. Check there are no power factor correction capacitors or surge absorbers in motor cable.
2. Check for an earth fault in motor or motor cables by measuring the insulation resistances of motor and motor cable.
A2040
AUTORESET		Cause: A fault is to be autoreset.

Solution:

1. This is a informative alarm.
2. See parameter group 32 Automatic reset.
A2041
MOTOR NOM
VALUE		Cause: The motor configuration parameters are set incorrectly or the drive is not dimensioned correctly.

Solution:

1. Check the settings of the motor configuration parameters in group 99.
2. Check that the drive is sized correctly for the motor.
A2042
D2D CONFIG		Cause: The settings of drive-to-drive link configuration parameters (group 57) are incompatible.

Solution:

1. Check the settings of the parameters in group 57 D2D communication.
A2043
STALL		Cause: Motor is operating in stall region because of e.g. excessive load or insufficient motor power.

Solution:

1. Check motor load and drive ratings.
2. Check fault function parameters.
3. This is a Programmable fault: check parameter 30.09 Stall function.
A2044
LCURVE		Cause: Overload or underload limit has been exceeded.

Solution:

1. Check the settings of the parameters in group 34 User load curve.
2. This is a Programmable fault: check parameter 34.01 Overload func / 34.02 Underload function.
A2045
LCURVE PAR		Cause: The load curve has been incorrectly or inconsistently defined.

Solution:

1. Check the settings of the parameters in group 34 User load curve.
A2046
FLUX REF
PAR		Cause: The U/f (voltage/frequency) curve has been incorrectly or inconsistently defined.

Solution:

1. Check the settings of the parameters in group 38 Flux ref.
A2047
SPEED
FEEDBACK		Cause: No speed feedback is received.

Solution:

1. Check the settings of the parameters in group 19 Speed calculation.
2. Check encoder installation. See the description of fault 0039 for more information.
A2048
OPTION COMM
LOSS		Cause: Communication between drive and option module (FEN-xx and/or FIO-xx) is lost.

Solution:

1. Check that option modules are properly connected to Slot 1 and (or) Slot 2.
2. Check that option modules or Slot 1/2 connectors are not damaged. To determine whether module or connector is damaged: Test each module individually in Slot 1 and Slot 2.
A2049
MOTTEMPAL2		Cause 1. This is a Programmable fault: check parameter 31.05 Mot temp2 prot Estimated motor temperature (based on motor thermal model) has exceeded alarm limit defined by parameter 31.07 Mot temp2 almLim.

Solution:
1. Check motor ratings and load.
2. Let motor cool down.
3. Ensure proper motor cooling: Check cooling fan, clean cooling surfaces, etc.
4. Check value of alarm limit.
5. Check motor thermal model settings (parameters 31.09…31.14).


Cause 2. Measured motor temperature has exceeded alarm limit defined by parameter 31.07 Mot temp2 almLim.

Solution:

1. Check that actual number of sensors corresponds to value set by parameter 31.06 Mot temp2 src.
2. Check motor ratings and load.
3. Let motor cool down.
4. Ensure proper motor cooling: Check cooling fan, clean cooling surfaces, etc.
5. Check value of alarm limit.
A2050
IGBTOLALARM		Cause: Excessive IGBT junction to case temperature. This fault protects the IGBT(s) and can be activated by a short circuit in the motor cable.

Solution:

1. Check motor cable.
A2051
IGBTTEMPALARM		Cause: Drive IGBT temperature is excessive. Fault trip limit is 100%.

Solution:

1. Check ambient conditions.
2. Check air flow and fan operation.
3. Check heatsink fins for dust pick-up.
4. Check motor power against drive power.
A2052
COOLALARM		Cause: Drive module temperature is excessive.

Solution:

1. Check ambient temperature. If it exceeds 40 °C (104 °F), ensure that load current does not exceed derated load capacity of drive. See appropriate Hardware Manual.
2. Check drive module cooling air flow and fan operation.
3. Check inside of cabinet and heatsink of drive module for dust pick-up. Clean whenever necessary.
A2053
MENU CHG
PASSWORD REQ		Cause: Loading a parameter listing requires a password.

Solution: Enter password at parameter 16.03 Pass code.
A2054
MENU CHANGED		Cause: A different parameter listing is being loaded.

Solution: This is a informative alarm.
A2055
DEVICE CLEAN		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2056
COOLING FAN		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2057
ADD COOLING		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2058
CABINET FAN		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2059
DC CAPACITOR		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2060
MOTOR BEARING		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2061
MAIN
CONTACTOR		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2062
RELAY
OUTPUT SW		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2063
MOTOR START
COUNT		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2064
POWER
UP COUNT		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2065
DC CHARGE
COUNT		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2066
ONTIME1
ALARM		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2067
ONTIME2
ALARM		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2068
EDGE1
ALARM		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2069
EDGE2
ALARM		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2070
VALUE1
ALARM		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2071
VALUE2
ALARM		Cause: Maintenance alarm.

Solution: See parameter group 44 Maintenance.
A2400
SOLUTION
ALARM		Cause: Alarm generated by custom application program.

Solution:

1. Check custom application program.
F0001
OVERCURRENT		Cause: Output current has exceeded internal fault limit.

Solution:

1. Check motor load.
2. Check acceleration times in parameter group 22 Speed ref ramp.
3. Check motor and motor cable (including phasing and delta/star connection).
4. Check that the start-up data in parameter group 99 corresponds to the motor rating plate.
5. Check that there are no power factor correction capacitors or surge absorbers in motor cable.
6. Check encoder cable (including phasing).
F0002
DC OVERVOLTAGE		Cause: Excessive intermediate circuit DC voltage

Solution:

1. Check that overvoltage controller is on, parameter 47.01 Overvolt ctrl.
2. Check mains for static or transient overvoltage.
3. Check brake chopper and resistor (if used).
4. Check deceleration time.
5. Use coast-to-stop function (if applicable).
6. Retrofit frequency converter with brake chopper and brake resistor.
F0003
DEVICE
OVERTEMP		Cause: Measured drive temperature has exceeded internal fault limit.

Solution:

1. Check ambient conditions.
2. Check air flow and fan operation.
3. Check heatsink fins for dust pick-up.
4. Check motor power against unit power.
F0004
SHORT CIRCUIT		Cause: Short-circuit in motor cable(s) or motor

Solution:

1. Check motor and motor cable.
2. Check there are no power factor correction 3. capacitors or surge absorbers in motor cable.
F0005
DC UNDERVOLTAGE		Cause: Intermediate circuit DC voltage is not sufficient due to missing mains phase, blown fuse or rectifier bridge internal fault.

Solution:

1. Check mains supply and fuses.
F0006
EARTH FAULT		Cause: Drive has detected load unbalance typically due to earth fault in motor or motor cable.

Solution:

1. Check there are no power factor correction capacitors or surge absorbers in motor cable.
2. Check that there is no earth fault in motor or motor cables:
– measure insulation resistances of motor and motor cable.
F0007
FAN FAULT		Cause: Fan is not able to rotate freely or fan is disconnected. Fan operation is monitored by measuring fan current.

Solution:

1. Check fan operation and connection.
F0008
IGBT OVERTEMP		Cause: Drive temperature based on thermal model has exceeded internal fault limit.

Solution:

1. Check ambient conditions.
2. Check air flow and fan operation.
3. Check heatsink fins for dust pick-up.
4. Check motor power against unit power.
F0009
BC WIRING		Cause: Brake resistor short circuit or brake chopper control fault

Solution:

1. Check brake chopper and brake resistor connection.
2. Ensure brake resistor is not damaged.
F0010
BC SHORT
CIRCUIT		Cause: Short circuit in brake chopper IGBT

Solution:

1. Replace brake chopper.
2. Ensure brake resistor is connected and not damaged.
F0011
BC OVERHEAT		Cause: Brake chopper IGBT temperature has exceeded internal alarm limit.

Solution:

1. Let chopper cool down.
2. Check resistor overload protection function settings (parameters 48.01…48.05).
3. Check that braking cycle meets allowed limits.
4. Check that drive supply AC voltage is not excessive.
F0012
BR OVERHEAT		Cause: Brake resistor temperature has exceeded fault limit defined by parameter 48.06 Br temp faultlimit.

Solution:

1. Stop drive.
2. Let resistor cool down.
3. Check resistor overload protection function settings (parameters 48.01…48.05).
4. Check fault limit setting, parameter 48.06 Br temp faultlim.
5. Check that braking cycle meets allowed limits.
F0013
CURR MEAS
GAIN		Cause: Difference between output phase U2 and W2 current measurement gain is too great.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0014
CABLE CROSS
CONNECTION		Cause: Incorrect input power and motor cable connection (i.e. input power cable is connected to drive motor connection).

Solution:

1. Check input power connections.
F0015
SUPPLY PHASE		Cause: Intermediate circuit DC voltage is oscillating due to missing input power line phase or blown fuse.

Solution:

1. Check input power line fuses.
2. Check for input power supply imbalance.
F0016
MOTOR PHASE		Cause: Motor circuit fault due to missing motor connection (all three phases are not connected).

Solution:

1. Connect motor cable.
F0017
ID-RUN
FAULT		Cause: Motor ID Run is not completed successfully.

Solution:

1. Check motor settings (parameters 99.04…99.13).
2. Check that no limits prevent ID run. The following must apply: 20.05 Maximum current > 99.06 Mot nom current
3. For Reduced and Normal ID run:
– 20.01 Maximum speed > 55% of 99.09 Mot nom speed
– 20.02 Minimum speed < 0
– Supply voltage > 65% of 99.07 Mot nom voltage
– Maximum torque (selected by 20.06 Torq lim sel) > 100% (only for Normal ID run).
4. Retry.
F0018
CURR U2
MEAS		Cause: Measured offset error of U2 output phase current measurement is too great. (Offset value is updated during current calibration.)

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0019
CURR V2
MEAS		Cause: Measured offset error of V2 output phase current measurement is too great. (Offset value is updated during current calibration.)

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0020
CURR W2
MEAS		Cause: Measured offset error of W2 output phase current measurement is too great. (Offset value is updated during current calibration.)

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0021
STO1 LOST		Cause: Safe Torque Off function is active, i.e. safety circuit signal 1 connected between X6:1 and X6:3 is lost while drive is at stopped state and parameter 30.07 Sto diagnostic is set to Alarm or No.

Solution:

1. Check safety circuit connections.
F0022
STO2 LOST		Cause: Safe Torque Off function is active, i.e. safety circuit signal 2 connected between X6:2 and X6:4 is lost while drive is at stopped state and parameter 30.07 Sto diagnostic is set to Alarm or No.

Solution:

1. Check safety circuit connections.
F0023
STO MODE
CHANGE		Cause: Error in changing Safe Torque Off supervision, i.e. parameter 30.07 Sto diagnostic setting could not be changed to value Fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0024
INTBOARD
OVERTEMP		Cause: Interface board (between power unit and control unit) temperature has exceeded internal fault limit.

Solution:

1. Let drive cool down.
F0025
BC MOD
OVERTEMP		Cause: Input bridge or brake chopper temperature has exceeded internal fault limit.

Solution:

1. Let drive cool down.
F0026
AUTOPHASING		Cause: Autophasing routine failed.

Solution: Try other autophasing modes (see parameter 11.07 Autophasing mode) if possible.
F0027
PU LOST		Cause: Connection between the JCU Control Unit and the power unit of the drive is lost.

Solution:

1. Check the connections between the JCU
2. Control Unit and the power unit.
F0028
PS COMM		Cause: Communication errors detected between the JCU Control Unit and the power unit of the drive.

Solution:

1. Check the connections between the JCU
Control Unit and the power unit.
F0029
IN CHOKE
TEMP		Cause: Temperature of internal AC choke excessive.

Solution:

1. Check cooling fan.
F0030
EXTERNAL		Cause: Fault in external device. (This information is configured through one of programmable digital inputs.)

Solution:

1. Check external devices for faults.
2. Check parameter 30.01 External fault setting.
F0031
SAFE TORQUE
OFF		Cause: Safe Torque Off function is active, i.e. safety circuit signal(s) connected to connector X6 is lost during start or run, or while drive is stopped and parameter 30.07 Sto diagnostic is set to Fault.

Solution:

1. Check safety circuit connections.
F0032
OVERSPEED		Cause: Motor is turning faster than highest allowed speed due to incorrectly set minimum/ maximum speed, insufficient braking torque or changes in load when using torque reference.

Solution:

1. Check minimum/maximum speed settings, parameters 20.01 Maximum speed and 20.02 Minimum speed.
2. Check adequacy of motor braking torque.
3. Check applicability of torque control.
4. Check need for brake chopper and resistor(s).
F0033
BRAKE START
TORQUE		Cause: Mechanical brake fault. Fault is activated if required motor starting torque (42.08 Brake open torq) is not achieved.

Solution:

1. Check brake open torque setting, parameter 42.08.
2. Check drive torque and current limits.
3. See parameter group 20 Limits.
F0034
BRAKE NOT
CLOSED		Cause: Mechanical brake control alarm. Fault is activated e.g. if brake acknowledgement is not as expected during brake closing.

Solution:

1. Check mechanical brake connection.
2. Check mechanical brake settings in parameter group 42 Mech brake ctrl.
3. To determine whether problem is with acknowledgement signal or brake, check if brake is closed or open.
F0035
BRAKE NOT
OPEN		Cause: Mechanical brake control alarm. Fault is activated e.g. if brake acknowledgement is not as expected during brake opening.

Solution:

1. Check mechanical brake connection.
2. Check mechanical brake settings in parameter group 42 Mech brake ctrl.
3. To determine whether problem is with acknowledgement signal or brake, check if brake is closed or open.
F0036
LOCAL CTRL
LOSS		Cause: Control panel or PC tool selected as active control location for drive has ceased communicating.

Solution:

1. Check PC tool or control panel connection.
2. Check control panel connector.
3. Replace control panel in mounting platform.
F0037
NVMEM
CORRUPTED		Cause: Drive internal fault.

Note: This fault cannot be reset.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0038
OPTION COMM
LOSS		Cause: Communication between drive and option module (FEN-xx and/or FIO-xx) is lost.

Solution:

1. Check that option modules are properly connected to Slot 1 and (or) Slot 2.
2. Check that option modules or Slot 1/2 connectors are not damaged. To determine whether module or connector is damaged: Test each module individually in Slot 1 and Slot 2.
F0039
ENCODER1		Cause: Encoder 1 feedback fault.

Solution:

1. If fault appears during first start-up before encoder feedback is used:
– Check cable between encoder and encoder interface module (FEN-xx) and order of connector signal wires at both ends of cable.
2. If fault appears after encoder feedback has already been used or during drive run:
– Check that encoder connection wiring or encoder is not damaged.
– Check that encoder interface module (FEN-xx) connection or module is not damaged.
– Check earthings (when disturbances are detected in communication between encoder interface module and encoder).
F0040
ENCODER2		Cause: Encoder 2 feedback fault.

Solution:

1. If fault appears during first start-up before encoder feedback is used:
– Check cable between encoder and encoder interface module (FEN-xx) and order of connector signal wires at both ends of cable.
2. If fault appears after encoder feedback has already been used or during drive run:
– Check that encoder connection wiring or encoder is not damaged.
– Check that encoder interface module (FEN-xx) connection or module is not damaged.
– Check earthings (when disturbances are detected in communication between encoder interface module and encoder).
F0045
FIELDBUS
COMM		Cause: Cyclical communication between drive and fieldbus adapter module or between PLC and fieldbus adapter module is lost.

Solution:

1. Check status of fieldbus communication.
2. Check settings of parameter group 50 Fieldbus.
3. Check cable connections.
4. Check if communication master is able to communicate.
F0046
FB MAPPING
FILE		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0047
MOTOR
OVERTEMP		Cause 1: Estimated motor temperature (based on motor thermal model) has exceeded fault limit defined by parameter 31.04 Mot temp1 fltLimit.

Solution:

1. Check motor ratings and load.
2. Let motor cool down.
Ensure proper motor cooling: Check cooling fan, 3. clean cooling surfaces, etc.
4. Check value of alarm limit.
5. Check motor thermal model settings (parameters 31.09…31.14).

Cause 2: Measured motor temperature has exceeded fault limit defined by parameter 31.04 Mot temp1 fltLim.

Solution:

1. Check that actual number of sensors corresponds to value set by parameter 31.02 Mot temp1 src.
2. Check motor ratings and load.
3. Let motor cool down.
4. Ensure proper motor cooling: Check cooling fan, clean cooling surfaces, etc.
5. Check value of alarm limit.
F0049
AI SUPERVISION		Cause: An analogue input has reached limit defined by parameter 13.33 AI superv cw.

Solution:

1. Check analogue input source and connections.
2. Check analogue input minimum and maximum limit settings.
F0050
ENCODER 1
CABLE		Cause: Encoder 1 cable fault detected.

Solution:

1. Check cable between FEN-xx interface and encoder 1.
2. After any modifications in cabling, re-configure interface by switching drive power off and on, or by activating parameter 90.10 Enc par refresh.
F0051
ENCODER 2
CABLE		Cause: Encoder 2 cable fault detected.

Solution:

1. Check cable between FEN-xx interface and encoder 2.
2. After any modifications in cabling, re-configure interface by switching drive power off and on, or by activating parameter 90.10 Enc par refresh.
F0052
D2D CONFIG		Cause: Configuration of the drive-to- drive link has failed for a reason other than those indicated by alarm A-2042, for example start inhibition is requested but not granted.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0053
D2D COMM		Cause 1: On the master drive: The drive has not been replied to by an activated follower for five consecutive polling cycles.

Solution:

1. Check that all drives that are polled (parameters 57.04 Follower mask 1 and 57.05 Follower mask 2) on the drive-to- drive link are powered, properly connected to the link, and have the correct node address.
2. Check the drive-to-drive link wiring.

Cause 2: On a follower drive: The drive has not received new reference 1 and/or 2 for five consecutive reference handling cycles.

Solution:

1. Check the settings of parameters 57.06 Ref 1 src and 57.07 Ref 2 src) on the master drive.
2. Check the drive-to-drive link wiring.
F0054
D2D BUF
OVERLOAD		Cause: Transmission of drive-to-drive references failed because of message buffer overflow.

Solution:

1. This is a Programmable fault: check parameter 90.05 Enc cable fault.
2. There is an hardware or software issue in drive, need to repaur or replace drive.
F0055
TECH LIB		Cause: Resettable fault generated by a technology library.

Solution: Refer to the documentation of the technology library.
F0056
TECH LIB
CRITICAL		Cause: Permanent fault generated by a technology library.

Solution: Refer to the documentation of the technology library.
F0057
FORCED
TRIP		Cause: Generic Drive Communication Profile trip command.

Solution: Check PLC status.
F0058
FB PAR
ERROR		Cause: The drive does not have a functionality requested by PLC, or requested functionality has not been activated.

Solution:

1. Check PLC programming.
2. Check settings of parameter group 50 Fieldbus.
F0059
STALL		Cause: Motor is operating in stall region because of e.g. excessive load or insufficient motor power.

Solution:

1. Check motor load and drive ratings.
2. Check fault function parameters.
3. This is a Programmable fault: check parameter 30.09 Stall function.
F0060
LOAD CURVE		Cause: Overload or underload limit has been exceeded.

Solution:

1. Check the settings of the parameters in group 34 User load curve.
F0061
SPEED
FEEDBACK		Cause: No speed feedback is received.

Solution:

1. Check the settings of the parameters in group 19 Speed calculation.
2. Check encoder installation. See the description of fault 0039 (ENCODER1) for more information.
F0062
D2D SLOT
COMM		Cause: Drive-to-drive link is set to use an FMBA module for communication, but no module is detected in specified slot.

Solution:

1. Check the settings of parameters 57.01 and 57.15. Ensure that the FMBA module has been detected by checking parameters 09.20…09.22.
2. Check that the FMBA module is correctly wired.
3. Try installing the FMBA module into another slot.
F0063
MOTOR TEMP2		Cause 1: Estimated motor temperature (based on motor thermal model) has exceeded fault limit defined by parameter 31.08 Mot temp2 fltLim.

Solution:

1. Check motor ratings and load.
2. Let motor cool down.
3. Ensure proper motor cooling: Check cooling fan, clean cooling surfaces, etc.
4. Check value of alarm limit.
5. Check motor thermal model settings (parameters 31.09…31.14).

Cause 2: Measured motor temperature has exceeded fault limit defined by parameter 31.08 Mot temp2 fltLim.

Solution:

1. Check that actual number of sensors corresponds to value set by parameter 31.06 Mot temp2 src.
2. Check motor ratings and load.
3. Let motor cool down.
4. Ensure proper motor cooling: Check cooling fan, clean cooling surfaces, etc.
5. Check value of alarm limit.
F0064
IGBT
OVERLOAD		Cause: Excessive IGBT junction to case temperature. This fault protects the IGBT(s) and can be activated by a short circuit in the motor cable.

Solution:

1. Check motor cable.
F0065
IGBT TEMP		Cause: Drive IGBT temperature is excessive. Fault trip limit is 100%.

Solution:

1. Check ambient conditions.
2. Check air flow and fan operation.
3. Check heatsink fins for dust pick-up.
4. Check motor power against drive power.

F0066
COOLING		Cause: Drive module temperature is excessive.

Solution:

1. Check ambient temperature. If it exceeds 40 °C (104 °F), ensure that load current does not exceed derated load capacity of drive. See appropriate Hardware Manual.
2. Check drive module cooling air flow and fan operation.
3. Check inside of cabinet and heatsink of drive module for dust pick-up. Clean whenever necessary.
F0201
T2 OVERLOAD		Cause: Firmware time level 2 overload.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0202
T3 OVERLOAD		Cause: Firmware time level 3 overload.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0203
T4 OVERLOAD		Cause: Firmware time level 4 overload.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0204
T5 OVERLOAD		Cause: Firmware time level 5 overload.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0205
A1 OVERLOAD		Cause: Application time level 1 fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0206
A2 OVERLOAD		Cause: Application time level 2 fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0207
A1 INIT
FAULT		Cause: Application task creation fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0208
A2 INIT
FAULT		Cause: Application task creation fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0209
STACK ERROR		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0210
FPGA ERROR		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0301
UFF FILE
READ		Cause: File read error.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0302
APPL DIR
CREATION		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0303
FPGA CONFIG
DIR		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0304
PU RATING ID		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0305
RATING DATABASE		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0306
LICENSING		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0307
DEFAULT FILE		Cause: Drive internal fault.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0308
APPLFILE PAR		Cause: Corrupted application file.
Note: This fault cannot be reset.

Solution:

1. Reload application.
2. If fault is still active there is an hardware or software issue in drive, need to repaur or replace drive.
F0309
APPL LOADING		Cause: Corrupted application file.

Solution:

1. Reload application.
2. If fault is still active there is an hardware or software issue in drive, need to repaur or replace drive.
F0310
USERSET LOAD		Cause: Loading of user set is not successfully completed because:
– requested user set does not exist
– user set is not compatible with drive program
– drive has been switched off during loading.

Solution:

1. Reload.
F0311
USERSET SAVE		Cause: User set is not saved because of memory corruption.

Solution:

1. Check the setting of parameter 95.01 Ctrl boardSupply.
2. If the fault still occurs there is an hardware or software issue in drive, need to repaur or replace drive.
F0312
UFF OVERSIZE		Cause: UFF file is too big.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0313
UFF EOF		Cause: UFF file structure failure.

Solution:

1. Delete file.
2. After this problem remain same then there is an hardware or software issue in drive, need to repaur or replace drive.
F0314
TECH LIB
INTERFACE		Cause: Incompatible firmware interface.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0315
RESTORE FILE		Cause: Restoration of backed-up parameters failed.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0316
DAPS MISMATCH		Cause: Mismatch between JCU Control Unit firmware and power unit logic versions.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
F0317
SOLUTION
FAULT		Cause: Fault generated by function block SOLUTION_FAULT in the solution program.

Solution:

1. Check the usage of the SOLUTION_FAULT block in the solution program.
F0318
MENU HIDING		Cause: Menu hiding file missing or corrupted.

Solution: Reload application.
A2076
TEMP MEAS
FAILURE		Cause: Problem with internal temperature measurement of the drive.

Solution: There is an hardware or software issue in drive, need to repaur or replace drive.
